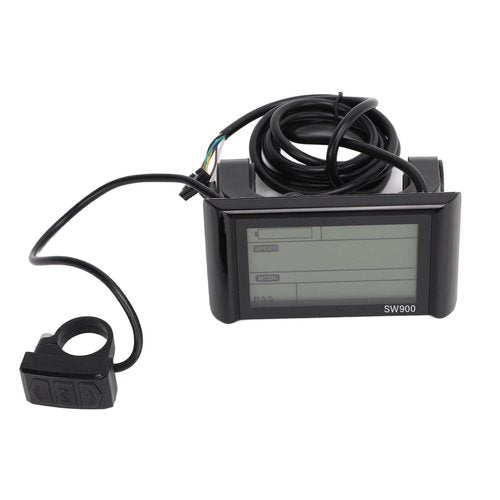

RiToEasysports Electric LCD Display, Electric Display Meter Control Panel Colourful Multifunctional SW900 with 5 Pin Socket Compatible with 36V and 48V

Brand: RiToEasysports

Features:

• [Colorful Display Panel] Easily view essential data such as battery status, speed, distance, and more while cycling.
• [Enhanced Cycling Performance] Improve your electric system with this and efficient sw900 display upgrade.
• [Useful Riding Data] Track remaining battery, current speed, average speed, maximum speed, clock, and total distance effortlessly.
• [Pas Compatible] Choose assistance levels with pas installation for a customized riding experience.
• [Multifunctional Display] Control your electric system with the sw900, compatible with 36v and 48v for accurate power monitoring and cycling mileage.

Binding: Apparel

model number: RiToEasysportswu5a6ptcxv

Part Number: RiToEasysportswu5a6ptcxv

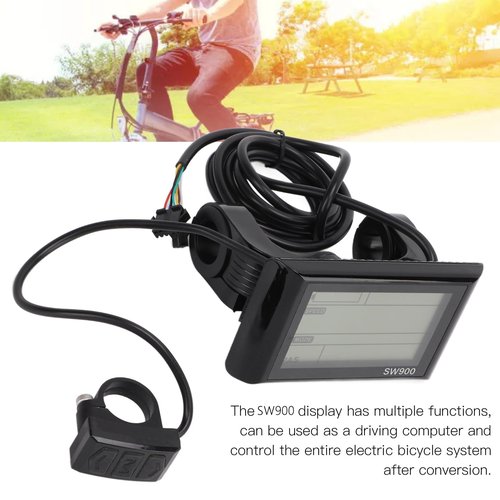

Details: 1. Multifunctional SW900 Display: The SW900 display has multiple functions, can be used as a driving computer and control the entire electric system after conversion.
2. Reflect The Battery Power: It is compatible with 36V and 48V voltages, which can truly reflect the battery power and record the power consumption in real time to ensure cycling mileage.

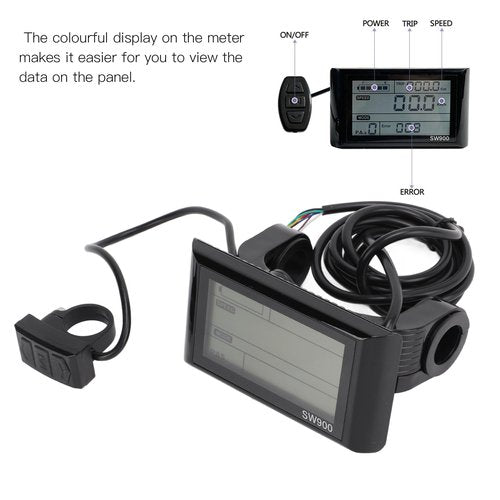

3. Colourful Display: The colourful display on the meter makes it easier for you to view the data on the panel.
4. Data Presentation: While riding the bike, the product will display a lot of useful data on your bike, such as the remaining battery, current speed, average speed, maximum speed, clock, total one way distance.
5. Alternative Assistance Level: If PAS is installed, the display allows to select the level of assistance they want.

Specification:
Item Type: Electric Display
Weight: Approx.270g / 9.5oz
Material: Plastic

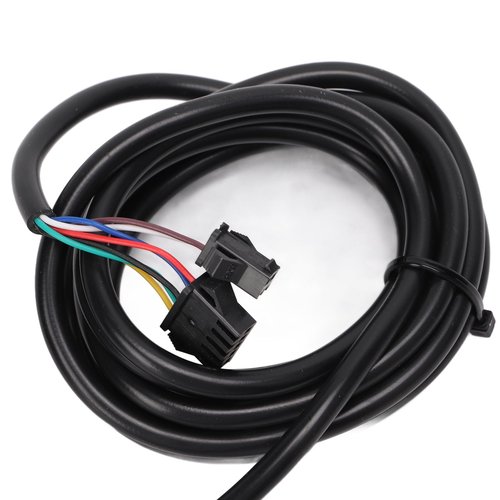

Product Size: Meter Approx.11 x 6cm / 4.3 x 2.4in, Line Length Approx.165cm / 65.0in

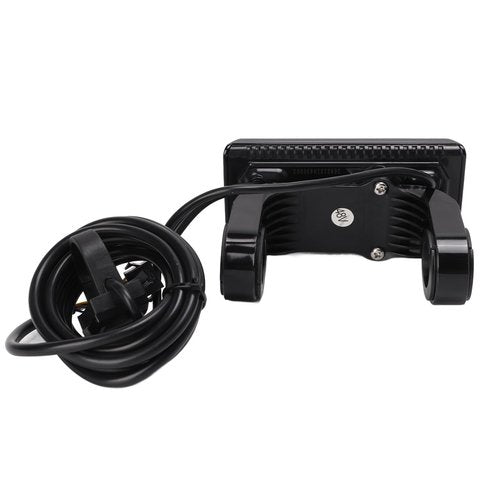

Applicable Handlebar Mounting Diameter: Approx.22.2mm / 0.9in
Voltage: 36V 48V
Socket: 5 Pin Socket
Application: Suitable For JN Controller And Suitable For Pasion Electric Motor Kit
Function Description:
1. Display Functions: Speed Display, Power Gear Display, Power Indicator, Fault Hint, Total Mileage, Single Mileage, Headlight Display, Single Driving Time Display.
2. Control And Setting Functions: Power Switch Control, Headlight Switch Control, 6km/H Inching Control, Wheel Diameter Setting, Maximum Speed Setting, Idle Automatic Sleep Time Setting, Backlight Brightness Setting, Voltage Level Setting, PAS Connection.
3. Communication Protocol: UART

PackageList:
1 x SW900 Meter
1 x Manual

Note:
It must be compatible with the controller that uses the same communication protocol.

Package Dimensions: 5.1 x 3.1 x 3.1 inches
