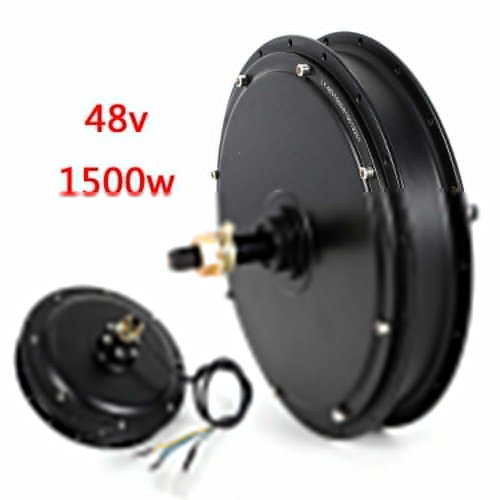

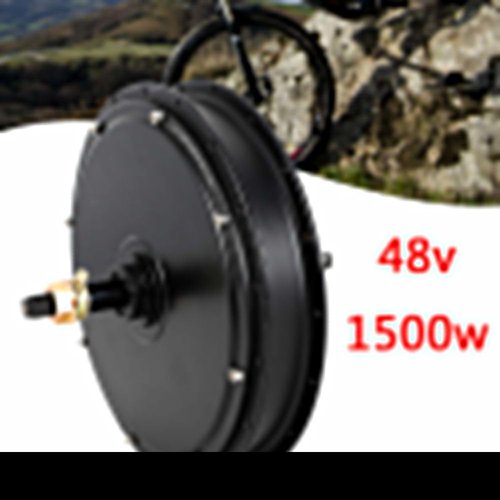

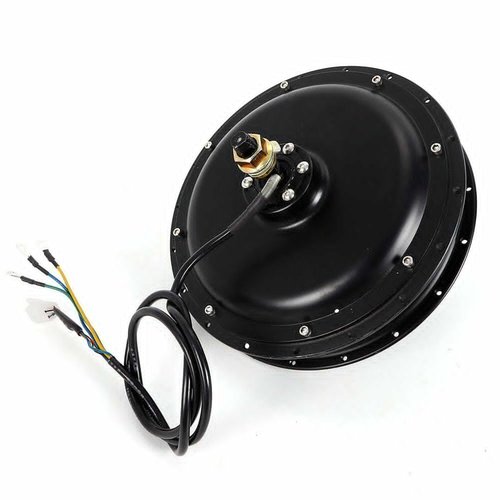

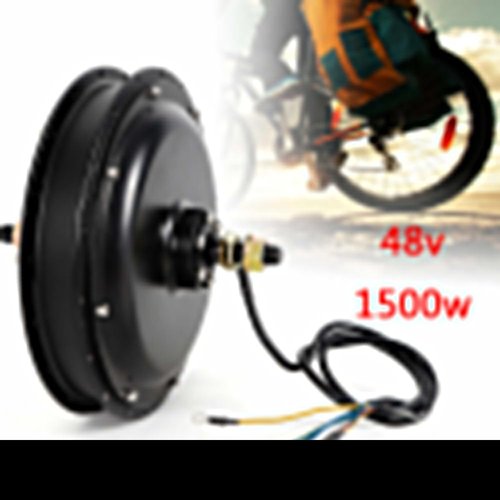

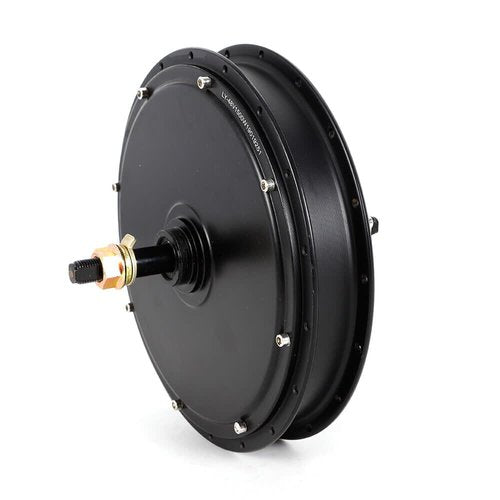

Rear Wheel Motor, 48V 1500W Electric Hub Motor 500rpm Brushless Gearless Threaded Hub Motor for 20-28" Conventional Bikes and Rear Wheels with Dropouts of 5.31Inches

Brand: RTUSUML

Color: Black

Features:

• ?�High Speed?? The speed of this motor can reach 500rpm, which can make your ride easier. So, you can fully enjoy the riding.
• ?�Smooth Running?? The friction of this rear wheel motor is greatly reduced when running because it has no brush and gear so that it can run more smoothly even on irregular roads.
• ?�Low noise?? This brushless gearless rear wheel motor runs with low friction, which will release less than 55 dB of noise during operation, allowing you to enjoy a quiet ride.
• ?�High Efficiency?? This brushless gearless rear wheel motor has higher working efficiency because of its high power(1500W) and torque density(55N.m).
• ?�Low Maintenance Cost?? This rear wheel motor has a low maintenance cost because it has no brushes, so you don't have to replace the brushes to reduce your economic pressure.

model number: Rear Wheel Motor

Part Number: RTUSUML

Details: Description
This brushless gearless rear wheel motor is made of aluminum and iron, which is more durable, having a long service life. The speed of this motor can reach 500rpm, which can make your ride easier. So, you can fully enjoy the riding. It is suitable for 20-28" conventional bikes, and normal mountain bike modifications. It will be your ideal choice.

Details
Brushless Gearless Motors: As brushless gearless motors do not have carbon brushes, frictional resistance and heat are greatly reduced, resulting in extremely high transmission efficiency and speed, allowing for more efficient operation.

Firm Housing: Its housing is made of solid aluminum, which is scratch and wear resistant, and is firmly locked with multiple screws to protect the copper wires and magnets inside.

Application
It is suitable for 20-28" conventional bikes, and normal mountain bike modifications(except snow bikes).

Specification
Material: Aluminum+ Iron + Copper+Magnetic Steel
Color: Black
Motor Type: Brushless Gearless Hub Motor, Rear Wheel Motor
Rated Power: 1500W
Nominal Voltage: 48V
Position: Rear Motor
RPM: 500rpm
Max Torque: 55N.m
Efficiency: 85%
ALEX Open Size: 135mm/5.31in
Brake Type: Disc Brake
NOISE (DB):ï¼?5db
Drive and Freewheel: 5.6.7

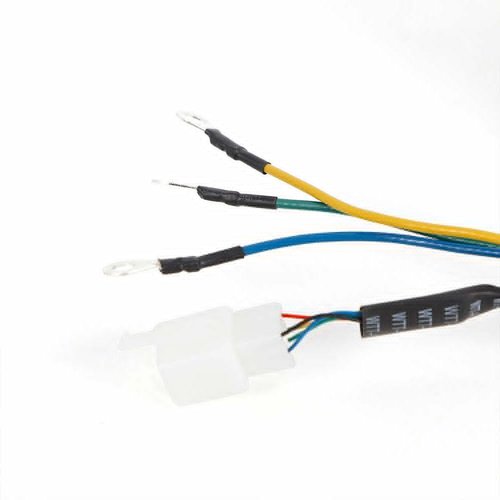

Cable Location: Shaft Side, Left
Hub Holes: 36 Holes
Salt Fog Test: 24/96
Hall Sensor: 3
Packing Size: 25*28*29in/9.84*11*11.41in
Applicable Model Sizes: 50-71cm/20-28in
Gross Weight: 7kg/15.43lbs

Package Included
1* Rear Wheel Motor

EAN: 0747495714813

Package Dimensions: 11.4 x 11.0 x 9.8 inches
