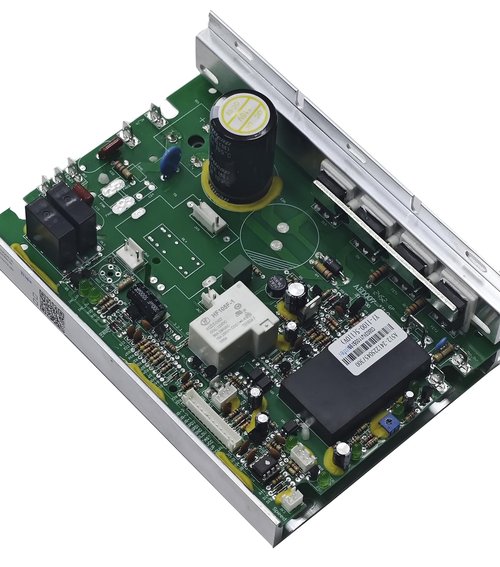

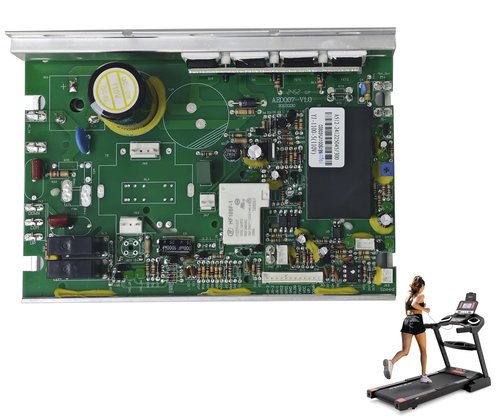

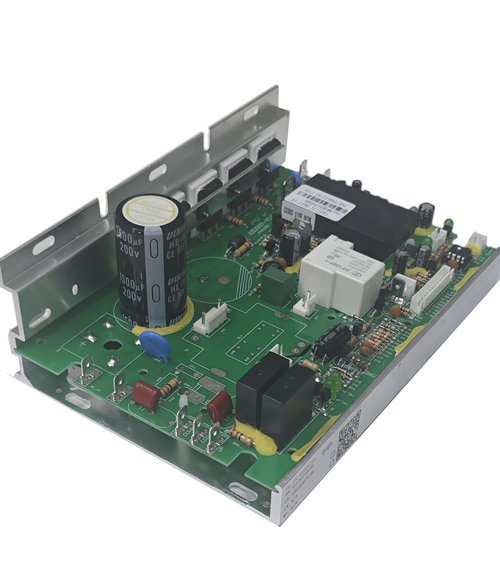

PA-AE00070L YJ-2256L Treadmill Control Board Motherboard, 12 Pins Treadmill Motor Controller D020105 Fits for Sole Fitness Treadmill F63 F65, Control Drive Motor Speed

Brand: camicinta

Color: green

Features:

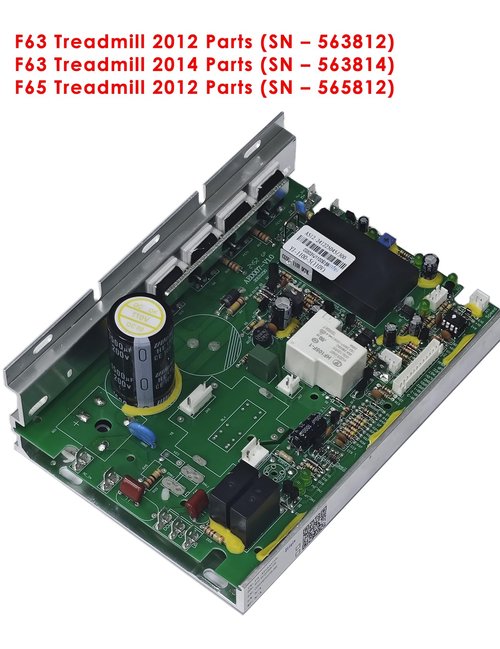

• Application Scope: This old model treadmill control board is suitable for specific - year Sole Fitness F63 and F65 treadmills. It can replace the following parts: F63 treadmill parts for 2012 (Serial Number - 563812), F63 treadmill parts for 2014 (Serial Number - 563814), and F65 treadmill parts for 2012 (Serial Number - 565812).
• Replacement Models: Our 12-pin motherboard can replace models such as PA - AE00070L, YJ - 2256L, D020105, AE00070L, AE0007EL, and AE0007V10. There are numerous models of treadmill circuit boards. Please recheck the product appearance and compatibility before purchasing.
• Function: The treadmill motor controller not only needs to convert power but also monitor the voltage input into the motor, compare it with the belt speed, and then adjust the voltage to keep the motor running at the set speed as steadily as possible. Meanwhile, it attempts to prevent overloads, overspeed conditions, power spikes, and abnormal motor torque output.
• Advantages of Ideal Replacement: Excellent craftsmanship and strict inspection before leaving the factory are essential conditions for the product's reliability, stability, and long-term use. All products have been tested on machines before leaving the factory.
• Elimination of Other Factors: There are many factors that can cause treadmill malfunctions. Please make sure you need new treadmill control board parts before purchasing to avoid unnecessary trouble.

model number: AE00070L

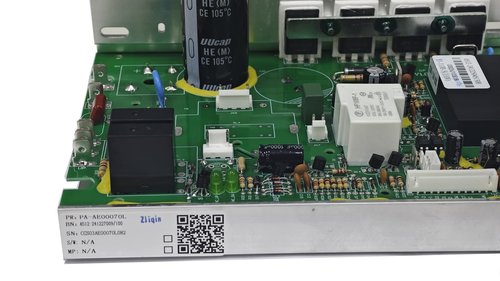

Part Number: PA-AE00070L

Details: HOW TO IDENTIFY ERROR CODE

In the event of an error, the screen will jump to [Home screen, followed by the error code.

E1 If the motor has no output signal during correction, then all output signals STOP and the "E1" code is displayed.

E2 When the engine is overloaded and the control board activates overcurrent protection, the "E2" code is displayed, and all outputs are stopped.

E3 When ascension fails to correct through, the "E3" code is displayed, if the INCLINE action is abnormal and cannot return to zero during POWER UP the code "E3" is displayed in the INLINE window while the program is running, this function is abnormal, but it must still be operable
Solution: Self-check, redrop

E4 When the voltage at both ends of the motor is abnormal or the motor wiring is abnormal, the "E4" code is displayed, and all output is STOP

E5 When the communication between the electronic watch and the control board is interrupted or abnormal, the "E5" code is displayed, and all outputs are STOP.

E6 When the controller fails, the "E6" code is displayed and all outputs are stopped. Just replace the controller

E7 When the external voltage is abnormal, the "E7" code is displayed and all outputs are STOP. Just replace the controller

EAN: 0783296437810

Package Dimensions: 10.4 x 6.5 x 4.0 inches
