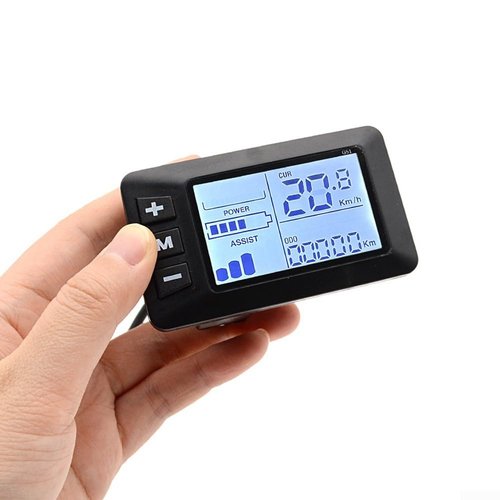

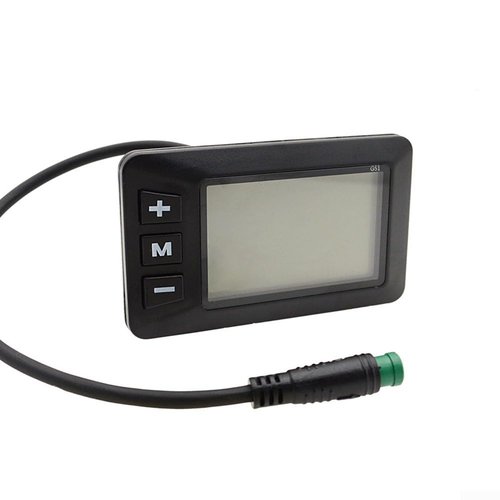

E-Bike Display, Electric Bike LCD Display, 5 Pins G51 Color Screen Intelligent, Ebike LCD Display Control Panel Wireless Bicycle Speedometer Odometer For 24V 36V 48V Systems(Black-white screen)

Brand: Taberoater

Color: Black-white screen

Features:

• *Compatibility: This e-bike display utilizes the No.2 communication protocol and must be paired with a compatible No.2 controller for proper functionality.
• *Sturdy Design: With ABS body, strong and wear-resistant, operating temperature of -20 to 60 degrees.

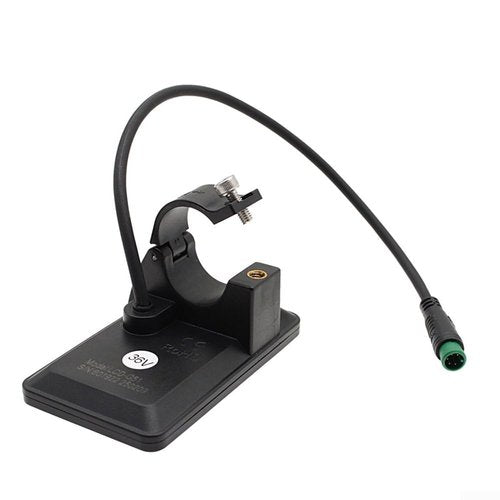

• *Mounting Fit: The display is suitable for handlebars approximately Φ22.2mm / Φ0.87in, a secure and stable installation on a wide range of e-bikes.
• *Clear Readability: The colour/black-white LCD screen provides clear visibility of essential metrics such as mileage, speed, battery status, etc.

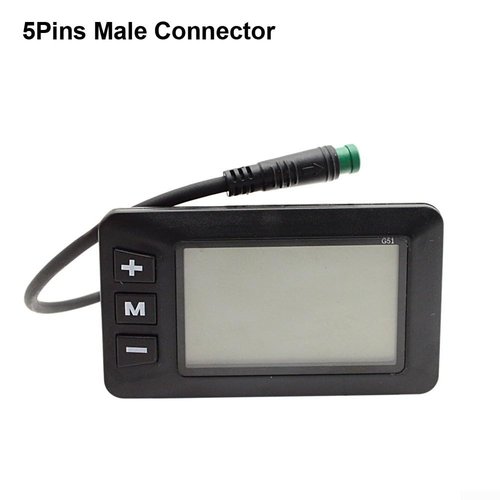

• *The length of the cable is 25cm, 5pins waterproof connector

model number: L182Q372Z2WE501A6UB131

Part Number: L182Q372Z2WE501A6UB131

Details: Specifications:
*Product Name: E-Bike Display
*Material: ABS

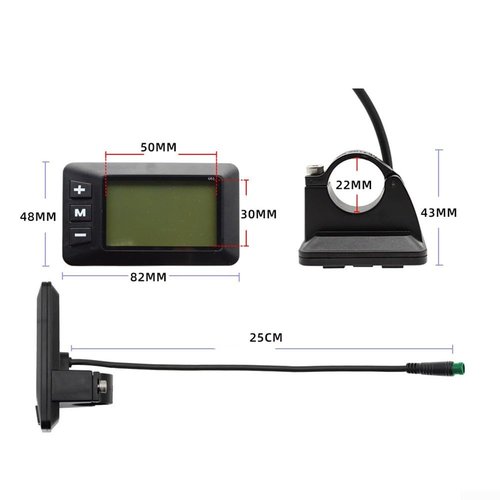

*Size: About 82x48mm
*Color: Black
*Working Voltage: DC 24V/36V/48V

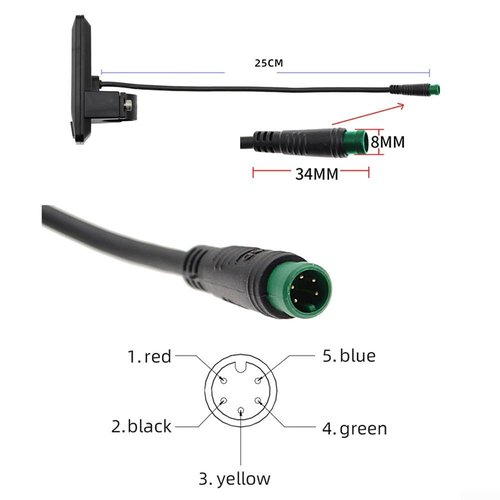

*Wiring instructions:
Red cable: Battery positive pole
Black cable: Battery negative pole
Yellow cable: Communication transmission
Green cable: Communication reception
Blue cable: Ignition switch

Package Content:

1* display
